임시 야외 랙 및 피니언 3톤 건설용 엘리베이터 - SC300 KP-B15
| 원래 장소 | 슈아엔, 중국 |
|---|---|
| 브랜드 이름 | KANGBO |
| 인증 | TUV |
| 모델 번호 | SC300 |
| 최소 주문 수량 | 1 유닛 |
| 가격 | in USD |
| 포장 세부 사항 | 40'HQ 컨테이너는 50 미터 높은 승강기의 하나의 장치를 로딩할 수 있습니다 |
| 배달 시간 | 계약금의 레크엘아이피티 25 일 뒤 |
| 지불 조건 | 전신환, L/C (신용장) |
| 공급 능력 | 달 당 300 단위 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
SKYPE: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 애플리케이션 | 집 건물, 교량 건축물, 공장, 컴메리카들 쇼핑 몰 | 디자인 | EU 규정에 의하여 모듈 디자인 및 |
|---|---|---|---|
| 재료 | Q355B 강철판 | 모터 통제 | FC |
| 드라이브 모드 | 선반과 피니언 | 처리 | CNC 기계, 연장 고정대, 로봇 |
| 강조하다 | 3 톤 건설 엘리베이터,Q355B 철강 건설 엘리베이터,임시 야외 랙 및 피니언 호이스트 |
||
제품 설명

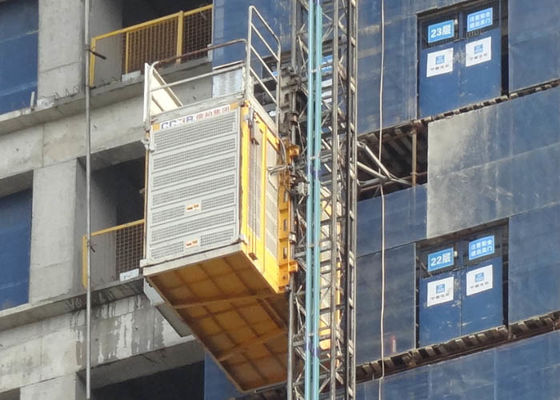

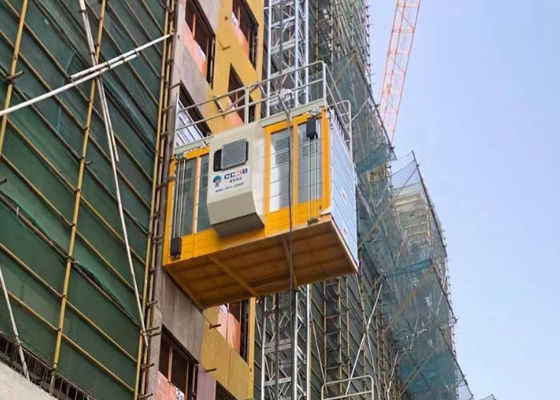

Temporary Outdoor Rack and Pinion Construction Elevators - SC300 KP-B15
Features
Standardization and universalization of cages make them can be used as left or right cage freely.
The standardized and universal electrical cabinet, resistance box and base make them can be replaced wholly or individually, and their installation position can also be changed.
The electrical cabinet and/or resistance box of the same type hoists are interchangeable.
Made of Q355B steel.
The hot dip galvanised or dip painting finishing make the inner wall of pipes also be protected, greatly improve the corrosion resistance.
The center-setting rack and drive device is of large power transmission moment, good force balance on drive frame.
Apply helical gearbox with large bearing capacity, small tooth wear, impact resistance, of which service life is greatly improved (about 3 times more than worm worm reducer).
Guide rollers of KANGBO hoists are non-eccentric, there is no need to adjust the clearance of rollers after installation.
Technical Data
| Item & Article No. | SC300BG, KP-B15; |
| Payload capacity | 3,000 kg |
| Lifting speed | 0–60 m/min. |
| Max. lifting height | 250/400 m* |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | Frequency Control |
| Engine power | 3x23 kw |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast Section | Square column 650*650*1508 mm with bolted rack |
| Rack module | 8 |
FAQ
What is the advantage of applying non-eccentric rollers on the rack and pinion construction elevators?
After the rack and pinion hoists are installed, the technicians must adjust the position of rollers to ensure the gaps between rollers and mast section pips are proper.
The rollers of lifts drive devices and hoist cars must be adjusted to be in place, and the gaps must be right, or, the elevators will shake or tremble when running.
And adjusting the rollers needs experiances and serious and careful attitude.
KANGBO Group finished this difficult jobs on its production line on behalf of KANGBO construction hoists users.
Apply non-eccentric rollers of elevator cars and drive devices mean the users don't need to adjust the rollers after installation.
Machine certified TUV according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009.
